Product Description

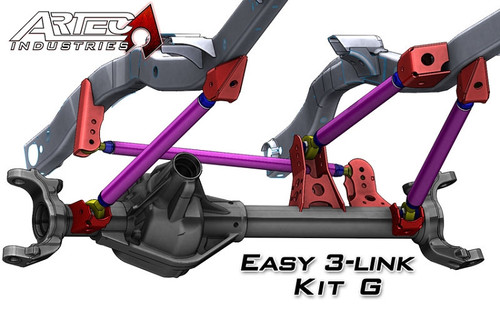

Easy 3 Link Kit G Adjustable Upper link. Our Easy 3-Link Kit G is the simplest way to get your links done. This Kit is based off our most popular parts we've sold our customers For a 3-link with panhard bar. This Kit is intended For axles without a front truss. If you have one of our 60 front trusses, choose Kit F. The heat and cryogenically treated chromoly rod ends are the strongest and longest lasting on the market. The included tube adapters feature machined Wrench Flats For Easy adjustments and tightening and conform to the outer diameter of the tubing it welds to. The included stainless steel high misalignment spacers allow For maximum articulation Inch the rod end. As an option, this Kit offers four foot lengths of both 1.5 inch and 2.0 inch tubing to be cut to the exact length needed For your particular vehicle. This Kit will require drilling of lower link holes to 3/4 inch unless you specify you'd like 9/16 inch bolts For your lower links.
Features:
- Tubing: Yes
- Panhard Frame Orientation: Outside Frame
- Wich Artec Truss are you using: Centered
- Upper Link Side Inner Frame mount: Front Driver/ Rear passenger
- Sold as Kit
- Includes:
- 1 RH, 1 LH - 7/8 inch -14tpi x 3/4 inch bore rod ends For panhard
- 1 RH, 1 LH - 7/8 inch -14tpi Tube Adapters For panhard
- 1 RH, 1 LH - 7/8 inch -14tpi Jam nuts For panhard
- 4 - 3/4 inch-9/16 inch High Misalignment Spacers
- 6 RH, 6 LH - 1.25 inch -12tpi x 1.0 inch bore rod ends
- 6 RH, 6 LH - 1.25 inch -12tpi Tube Adapters
- 6 RH, 6 LH - 1.25 inch -12tpi Jam nuts
- 12 - 1.0 inch-3/4 inch High Misalignment Spacers
- 2 - Lower Link Frame Brackets
- 1 - Pair Lower Link Axle Brackets (10 deg)
- 1 - Adjustable Link tower
- 1 - Inner Frame Bracket (0 deg) - Choose Driver Or Passenger
- 1 - Adjustable Panhard Frame Mount - Choose Orientation
- 1 - Adjustable Panhard Axle Mount - Choose Centered or Offset
- 1 - 4 ft 1.5 inch OD .250 inch thick DOM tubing (optional)
- 3 - 4 ft 2.0 inch OD .250 inch thick DOM tubing (optional)
